OBO HANDS rfid biometric fingerprint access control system kit electric Magnetic/bolt/strike lock for door+power supply full set

OBO HANDS rfid biometric fingerprint access control system kit electric Magnetic/bolt/strike lock for door+power supply full set
  • Продавецgrandmemories.us
  • Список ценUS $34.16piece
  • Продажная ценаUS $34.16piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,9 (140)

Oписание продукта



Wireless lock

Fingerprint Door Lock

Password Door Lock

Access Control system

Access Control Keypad

Electric Door Lock


Wired Video Door Phone Intercom Entry System

7 Inch LCD Monitor + RFID Reader & Camera + Electric Strike Lock


Access Control System


About Shipping:Please note,The precondition of DHL Free Shipping is your address is not the Remote Area.And please tell us how much the declared value write in the shipping Invoice for Customs clearance.Thanks


About this item:

This Hard-wired Video Door phone Intercom System consists of one 7\'\' color TFT monitor and one door camera. Upgraded chips are adopted for highly stable performance and it has a nice appearance. It is your perfect choice to use in villas with 700 lines CMOS camera, which can achieve monitoring, dual-way intercom and unlocking. You also can monitor outside image even without people pressing the Monitor button on the Indoor unit.

In order to satisfy most of the customers, a complete doorphone system with 5 RFID keyfobs, a push release button, a electric magnetic lock and a power supply have been launched. With this full kit, it will be more convenient to build the full access control system for the home security. You can open the door lock either from indoor or outdoor through several methods.


  • With micro-processing technology, auto-remote control, excellent performance and high reliability.
  • The TFT 7 inch digital color LCD for monitor.
  • Monitor outside manually.
  • Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking.
  • Additional monitor available up to 3(optional) and 4 outdoor cameras at most. it needs a multi-door controller when install 2/3/4 outdoor cameras.
  • TFT color screen with low power consumption, no radiation and high definition.
  • Hands-free intercommunication.
  • Brightness, color of video adjustable.
  • Ring volume and intercom volume of indoor monitor are adjustable.
  • The RFID outdoor unit supports maximum 500 pieces rfid keys. It comes with 2 management cards to add / delete keys.
  • The frequency of RFID reader is 125KHZ.
  • The frequency of the remote control kit is 433MHZ.
  • 16-chord melody rings for option.
  • 700TVL CMOS camera. Results in clearer video.
  • Do not disturb mode. off ring function.
  • Supports intercom between two indoor monitors


Item Inlcude:

  • 1 x RFID Reader & Camera
  • 1 x 7\' LDC Display
  • 1 x Access Control Power Supply
  • 1 x Electric Door Lock(RSNC/RB02/R180M/R180MI/R280M/R280MI/R280MW)
  • 1 x 15V Power Supply
  • 1 x Exit Button
  • 5 x RFID Keyfobs
  • 1 x Add/Del Operated Card
  • 1 x 5M Wired Cable


7\' Indoor monitor,One Camera max support connect 6 indoor monitors.This item is include one monitor,if you want to add more monitors,please contact us.


4 Pin Wired Cable,the default in this item is 5 meters length.If you need more longer wired,please contact us.


7\' LCD Display Monitor:


RFID Reader & Camera:

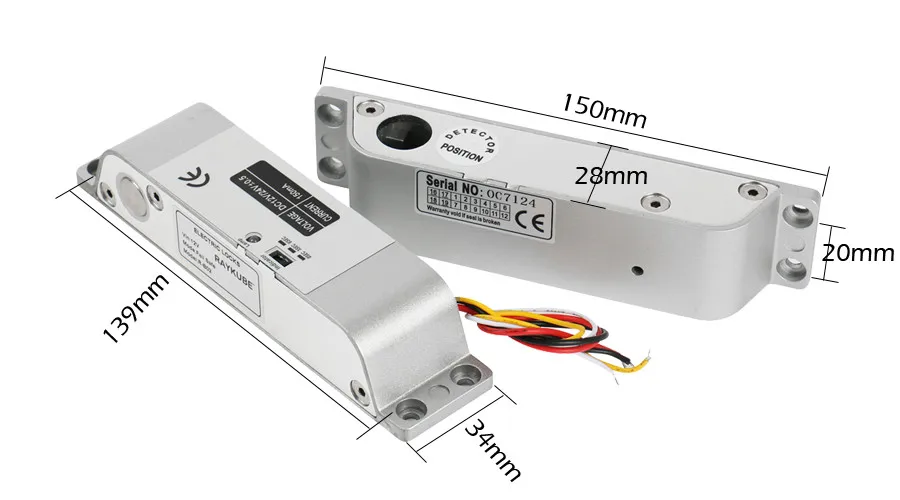

Electric Bolt Lock(RSNC/RB02/R180M/R180MI/R280M/R280MI/R280MW):

Magnetic Lock:


Products Features:

  • Collinear Load Test 180kg 300pounds /280kg,600pounds.
  • The Standard Voltage is 12VDC when Finished.
  • MOV Provides Reverse Current Protection.
  • Anti-Residual Magnetism Designed.
  • High Strength Material,Anodized Aluminum Housing.
  • Design without Mechanical Failure.
  • Increase the holding Force,Dual Insulative Housing.

Products Specifications:

  • Holding Force:                     180kg(300Lbs)/280kg(600Lbs)
  • Input Voltage:                     12VDC
  • Current:                              12V/120mA
  • Suitable:                             Wooden door , Glass door ,Metal door , Fireproof door
  • Surface Temp:                     ≤+20℃
  • Operating Temp:                  -10~+55℃(14-131F)
  • Humidity:                            0~90%(non-condensing)
  • Cover Finish:                       Anodized aluminum
  • Lock Finish:                         Zinc
  • Armature Plate Finish:          Zinc


ZL Bracket For 180kg Magnetic Lock

U Bracket For 180 Magnetic Lock

ZL Bracket For 280kg Magnetic Lock

U Bracket For 280 Magnetic Lock




Products Specifications:

R-SNC is designed for wooden door, metal door, PVC door and so on. The products of our company are various and full-equipped.The operating principle of electric strike is that the electric power turns into magnetic force.

Note: The Default mode is NC(Fail Safe),if you need NO mode,please Click Here

What is NC and NO mode?

NC:When Power On,the lock will be locked

NO:When Power Off,the lock locked.


  • Material: Stainless Steel
  • Testing to 1000000 cycles
  • NC Mode - (When Power Is Turned On Door Is Locked) Fail Safe Mode
  • High-Temperature Painted, Durable and Beatify Article
  • Suitable For: Wooden Door, Metal Door, Fireproof Door


  • Voltage: 12VDC
  • Current: 200mA - 450mA
  • Safety function: Built-out voltage spike suppressor
  • Opening Mode: 90 degree swinging door
  • Dimension (Face Plate): 150 (L) x 38.5 (W) x 34 (H) mm
  • Weight: 320g





Products Specifications:

Working voltage: 12V/24V DC (Adjustable time delay 0/3/6 Seconds)

                          Red-Power supply(+)  White-COM

                          Black-Power ground(-)

Working current:  Start state 1.2A

                          Persistent state 120mA

Coil type:            Continuous working

Security type:     Electri power lock,unlock

Lock core:          The diameter og 15mm stainless core,extending the lengh of 15mm

Lock mode:        Magnetic induction




Access Controller & Power Supply (R-P09):


Products Features:

  • 1.It controls electric lock directly.
  • 2.Can reduce the load of access controller, save wiring to reduc the hidden trouble
  • 3.Set NC / NO outputs, can control various types of electric locks
  • 4.Based delay control circuit, lock time can be in 0-15 seconds
  • 5.Automatic protection function, unexpected situations such as
  • 6.when the power supply short-circuit occurs, the power may be
  • 7.temporarily disconnected or the fuse auto insurance line off
  • 8.Operative device: E/M Lock, Access Controller, Exit Push Button

Products Specifications:

  • 1.AC input: Standard AC100V-240V 50-60HZ
  • 2.DC output: Stabilivolt DC12V/ 3 A
  • 3.Package Dimensions: 117 x 68 x 32mm



Exit Button (R-P11):

Products Features:

  • Here is a Exit Button for Access control use
  • Maximun Power Rating: 12V DC 3A-5A output
  • Performance Testing: 1000000 times aging test
  • Suitable For: Wooden Door, Metal Door, Glass Door,Fireproof Door, etc


Products Specification:

  • Faceplate Dimension : 88x88mm
  • Opening device: Normal Open
  • Maximun Power Rating: 3A/36VDC
  • Material: Hard Plastic


RFID Keyfobs:

1 IK3


  • 1.Water resistant
  • 2.Each card comes with key ring.
  • 3.Compatible with all RFID ID card reader for access
  • 4.Each token has been pre-programmed with an unique ID, which is printed on the back.


  • 1.Detecting distance: 3-10cm
  • 2.Operation frequency: 125KHz



Wiring Diagram:

Access Control Wiring Diagram
